2D 1/2 CCMP2


Trimos N° 700 405 20 14




  2D 1/2 CCMP2

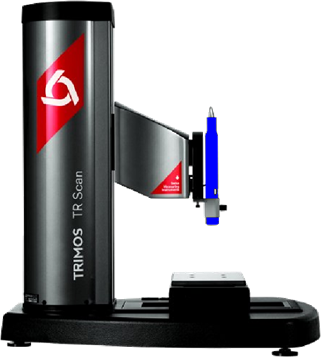

  • TRSCAN with 3 CNC Axes ( Z / X / Y )

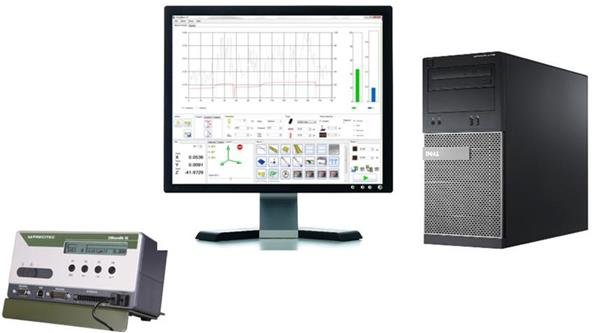

  • Confocal spectrometer Box
  • CL300 or CL600 ( 1 optical pen )
  • 1 Screen TFT 19”
  • Standard PC Dell with Windows Seven 32 bits Ultimate
  • Trimos Measurement and Trimos Analysis LT only in 2D software

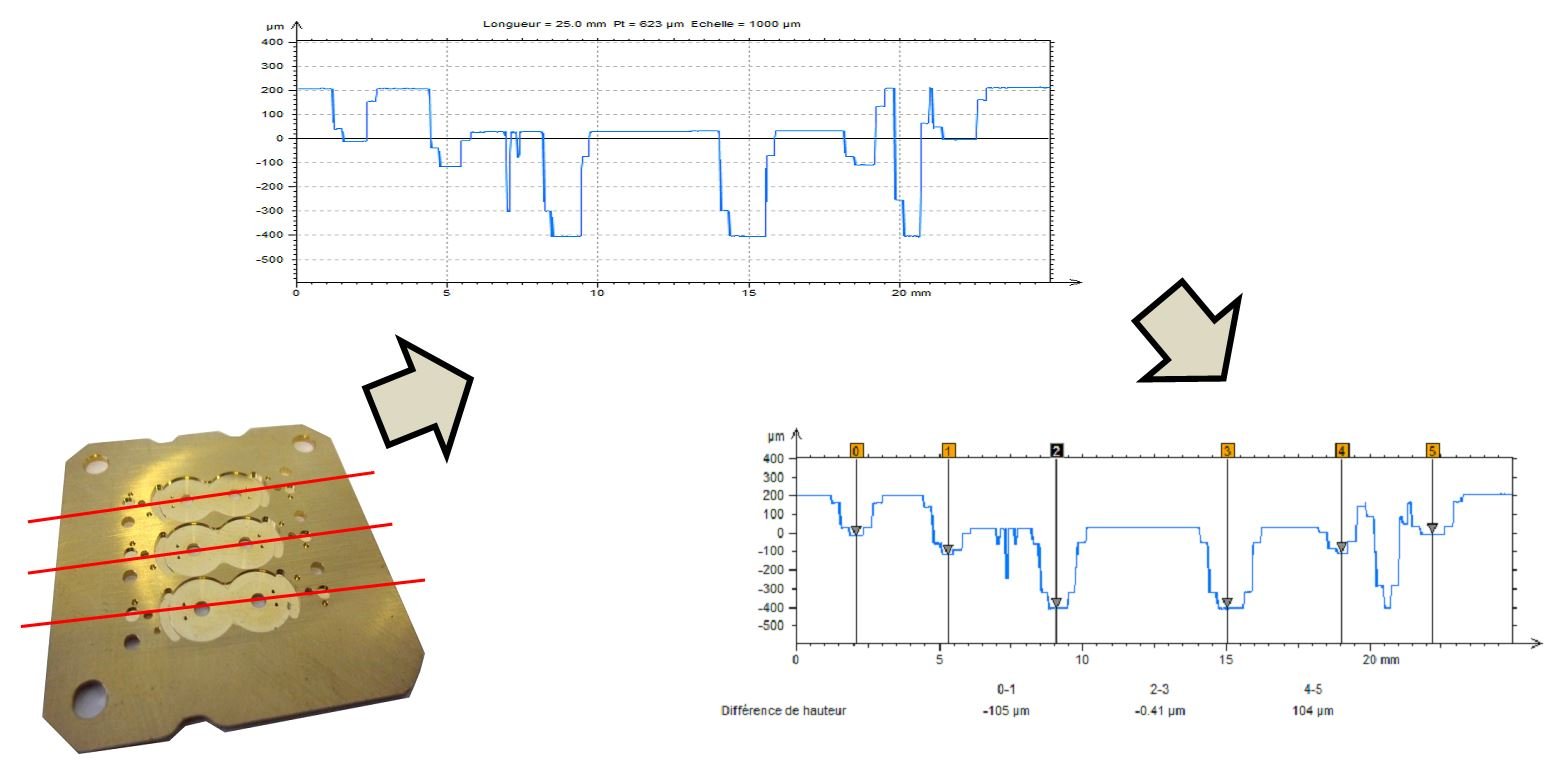

Application : Roughness in 2D ( profile in 2D for all parts ) but at multi position

Note : Not available for upgrade to 3D

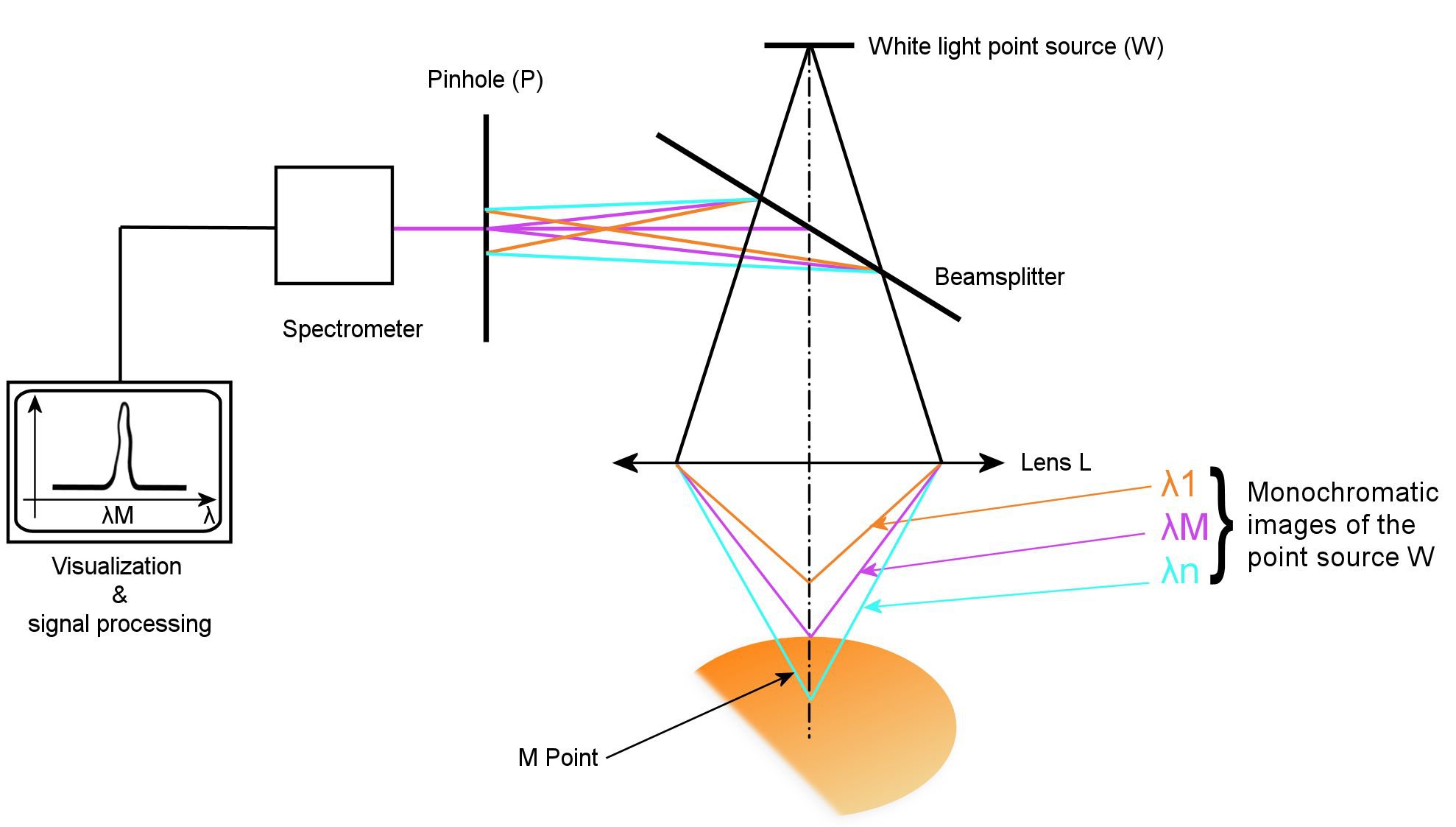

An objective colour L projects the image of a point source W along a continuum of monochromatic images located on the optical axis ("colour coding").

A sample placed in the area of colour coding shows the surface diffuse the incident light brush.

Backscattered light through the lens colour L in the opposite direction and arrives at a hole P that filters all wavelengths except one, λM.

The collected light is analyzed by a spectrograph S. The position of the sample is directly related to the wavelength detected λM.

A wide range of sensor are available with this version. It also offers significant numerical aperture.

  Chromatic confocal for distance & thickness

CL300 µmCL1000 µm
Measuring Range
300 µm
1000 µm
Working distance1)4.5 mm
19.1 mm
Resolution10 nm35 nm
Max slope 2)+/-30°+/- 45°
Lateral resolution2.5 µm1.8 µm
Numerial operture0.70.26
Spot size5 µm3.5 µm

1) Bottom of probe to middle of measuring range
2) Decrasing accuracy on the limits
At Refractive index n = 1.5
