Robot-supported Automatic measurement




Automated measuring cell – 100 % process integrated measurement

Fast – safe - complete

Robot-based 100 % measuring of bores, chamfers and plain depths. Measurements can either be integrated into production process or carried out separately. The extremely fast measuring cycle measures twenty-four-seven and provides 100 % measured values.


Different measuring tasks:
Autonomous measuring of bores, chamfers and plain depths with just one single measuring cell

Reliable data connection and back-up:
Any time precise and complete measured data by means of automatic wireless transfer

Big Data:
Improvement of manufacturing processes by automated or manual data evaluation

Controlling of 2 worlds:
The DIA-Gauge Software controls all measuring processes and robots

Many measuring processes:
Standardized and storable measuring processes for different applications
Further benefits:
- Automatic storage system for measuring instruments
- Calibration bar for automatic calibration
- Easy changeover
- Scalability
- Quick integration into processes
- The fast measuring cycle saves valuable time in a process
- Safety through 100 % measurement of all attributes
- Establishment of a DIAWIRELESS real radio network: Comprehensive data evaluation by transfer of 100 % measured values
- 100 % measured values ensure best production control

Automated measuring with Plug Gauge BMD

Automated removing of a Chamfer Gauge

Secure storage of each measuring instrument

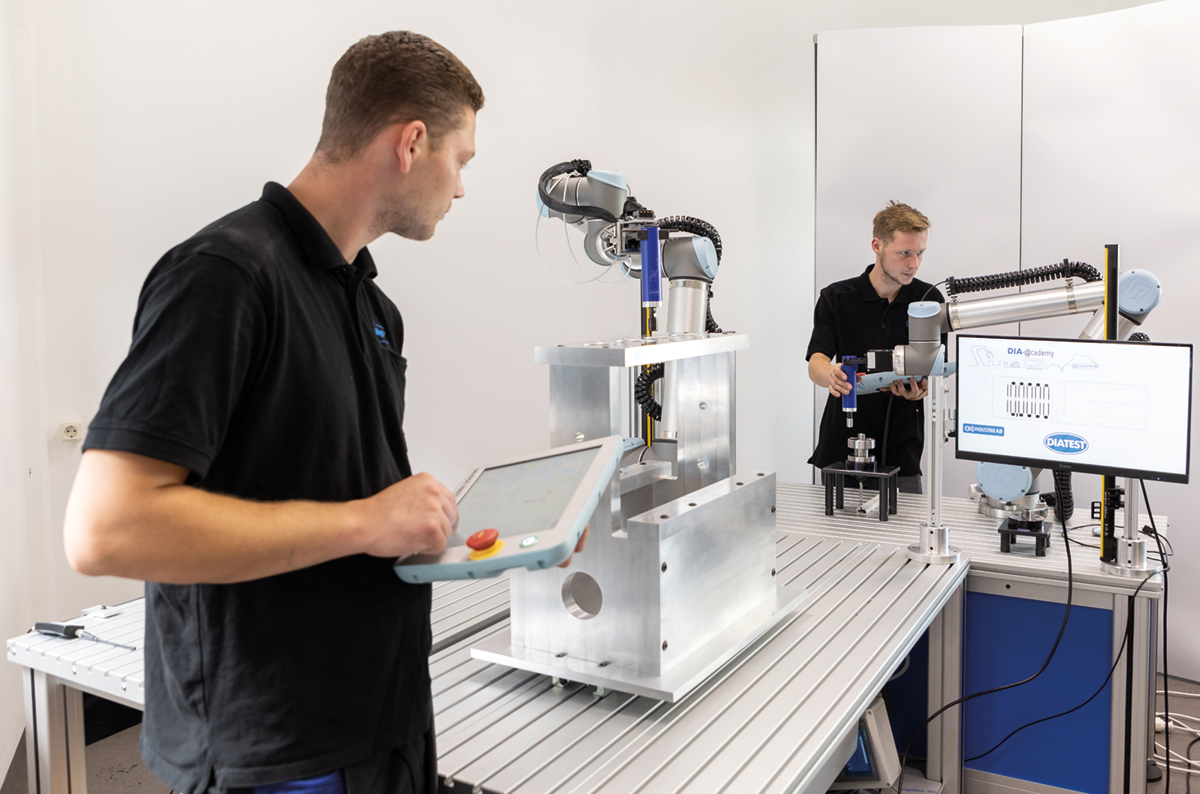

Robot-supported automatic measurement

Robot-supported automatic measurement

Robot-supported automatic measurement

Calibration process in the measuring cell

Software supported automated measuring
