Hollow Rotary Actuator

The Hollow Rotary Actuator is one kind of product for the circular motion between the cam index and DD motor. It can realize the multi-point orientation as DD motor but has better cost performance than DD motor. And it is widely used in diverse applications.

  Download Catalogue

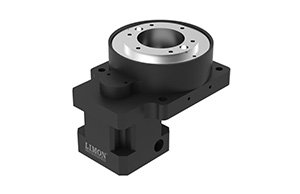

DY200
Hollow Rotary Actuator

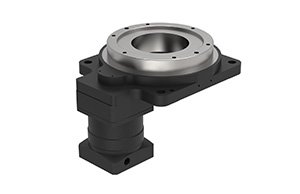

DY130
Hollow Rotary Actuator

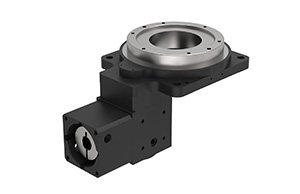

DY85
Hollow Rotary Actuator

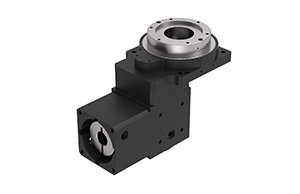

DY60
Hollow Rotary Actuator
Accurate data: Now LIMON hollow rotary actuators are sized in 60,85,135,200. The surface is through high and middle heat treatment which the grinding precision can be ISO6 and surface hardness HRC 65.Also the repetitive accuracy is ±15arc-sec, and concentricity&flatness ±0.05 mm.

Strength: These data above is under the strict control by LIMON to show its quality, now the hollow rotary actuator is applied in different industries especially in the 3C industry like the grinding machine of mobile phone shells also highly matched with the linear module for some applications.

  • Bottom and Workbench Contact, except the four screw holes, the center ring directly below the bearing also contacts the worktable.
  • Our pinion module is larger than other brands, other brand modulus is 0.8-0.9, we are 1.25, so at high deceleration ratio of 18, our gear strength is better.
  • There are steel rings at the bottom, and the load is borne by steel parts, in case the bearing presses the aluminium structure to deform clearance.
  • An integrated design of gear and cross roller bearings is under developing, it can improve rotation accuracy and stability.
  • Electroless nickel plating on working face, heat-treat, to prevent rusting and scratching.

Industries: Now the hollow rotary actuator is applied in different industries especially in the 3C industry like the grinding machine of mobile phone shells, also visual testing equipment,Laser equipment industry, Semi-conduct equipment industry,etc.

  1. High load
  2. High stiffness
  3. Digital control
  4. Multi-points positioning
  5. Repeated positioning accuracy: ±15arc-sec
  6. Flatness & concentricity: 0.02mm
  7. Competitive cost
  8. Replace six-axis solution
