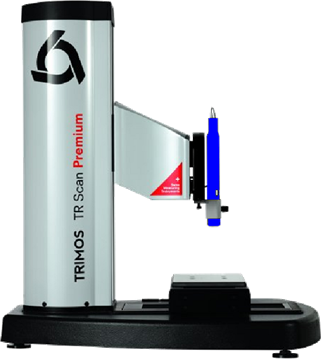

TR SCAN PACK

3D CCMP2

 Trimos N° 700 405 30 33








  3D CCMP2

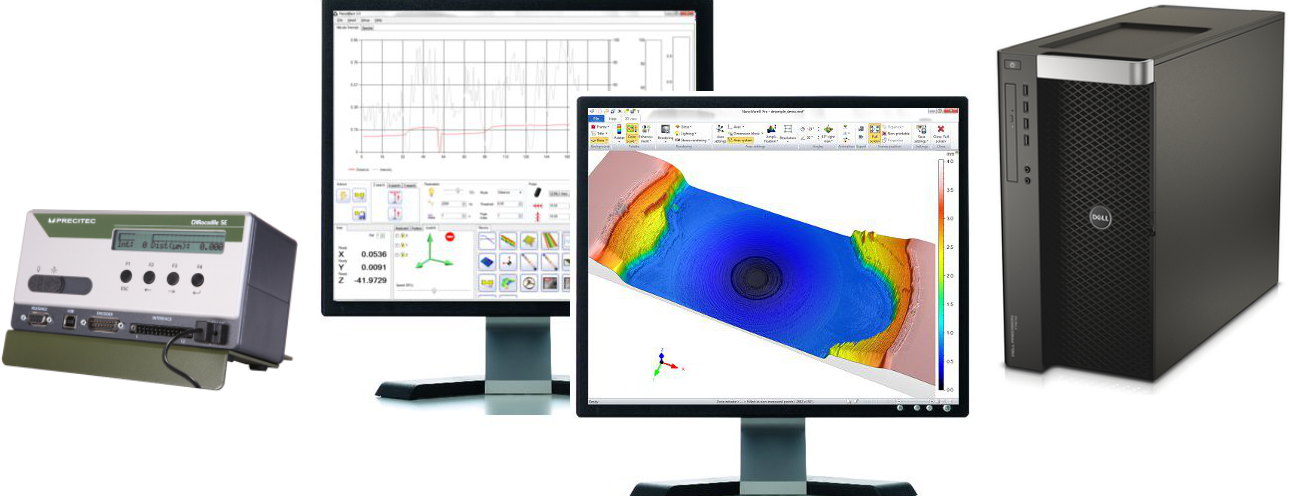

PACK INCLUDING

  • TRSCAN with 3 CNC Axes ( Z / X / Y )
  • Confocal spectrometer Box
  • CL300 or CL600 ( 1 optical pen )
  • 2 Screen TFT 19”
  • Workstation Dell with Windows Seven 64 bits Ultimate
  • Trimos Measurement and Trimos Analysis STT software



Application : Versatil instrument

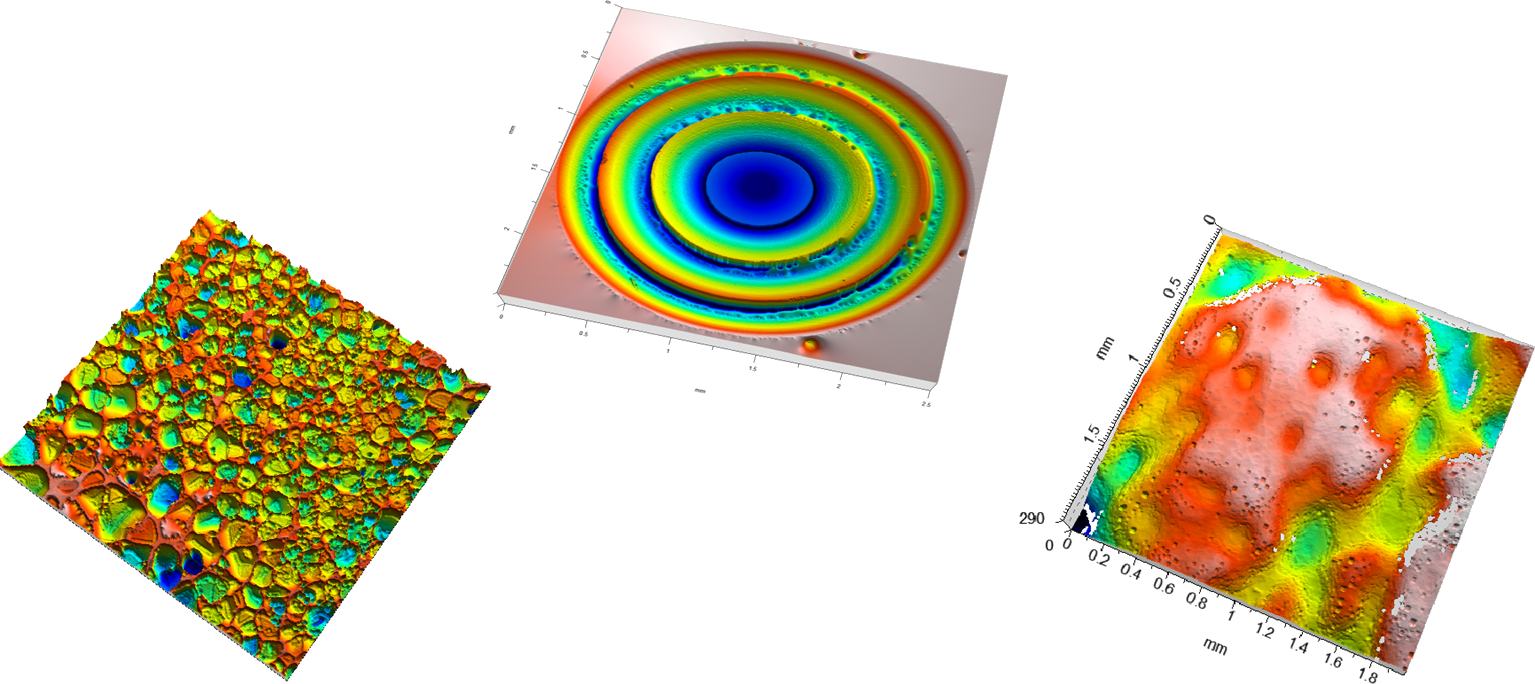

                          Roughness in 3D and Microtopography for all parts



TECHNICAL SPECIFICATIONS FOR CCMP2

An objective colour L projects the image of a point source W along a continuum of monochromatic images located on the optical axis ("colour coding")

A sample placed in the area of colour coding shows the surface diffuse the incident light brush.

Backscattered light through the lens colour L in the opposite direction and arrives at a hole P that filters all wavelengths except one, λM.

The collected light is analyzed by a spectrograph S. The position of the sample is directly related to the wavelength detected λM.

A wide range of sensor are available with this version. It also offers significant numerical aperture.

 Chromatic confocal for distance & thickness

OPTICAL PROBE
CL300 µmCL1000 µm
Measuring Range300 µm1000 µm
Working distance1)4.5 mm19.1 mm
Resolution10 nm35 nm
Max slope 2)+/-30°+/- 45°
Lateral resolution2.5 µm1.8 µm
Numerial operture0.70.26
Spot size5 µm3.5 µm

1) Bottom of probe to middle of measuring range
2) Decrasing accuracy on the limits
At Refractive index n = 1.5
