Automotive and Supplier Industry

Double Sheet Detection in the Automotive and Automotive Supplier Industry are very demanding applications with a high degree of automation and strict requirements regarding the reliability of the systems in order to provide a high degree of uptime. The large parts spectrum of new materials with widely varying magnetic and electric properties require systems with storage facilities for various parameters.


Destacker

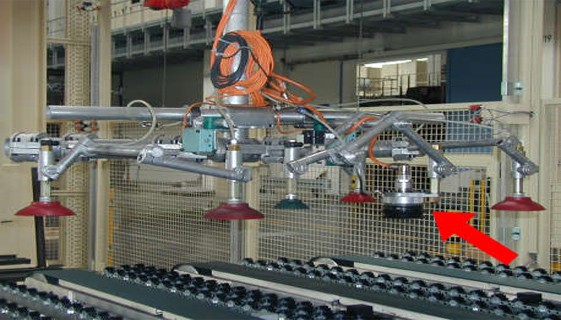

Typical applications of a single-sided double sheet detection system. The sensor is mounted in a spring-loaded vacuum cup assembly (arrow). The sensor has no lifting function; its sole purpose is pressing the sensor vertically against the sheet.

ProductE20UDK20
Accessory
SHX42
Sensor
P42AGS

Sensor brackets

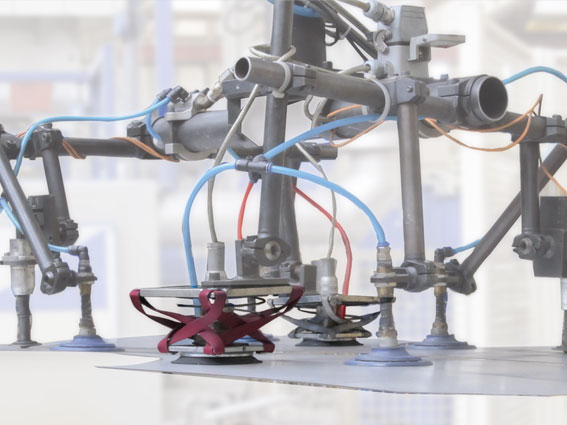

Sensor bracket SHX42 in the Automotive Industry.

Sensor brackets cover the full range of Double Sheet Control Applications, and were developed regarding the various requirements.


Centering station

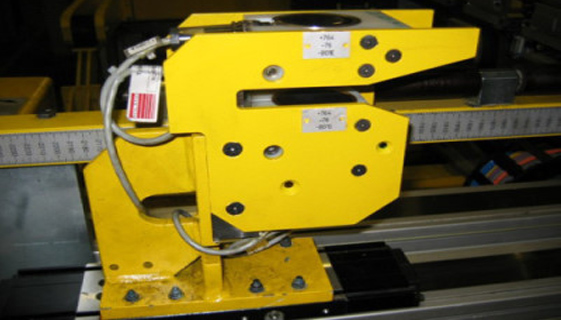

Noncontact Double Sheet Detection in a centering station.

The sensors are mounted in a C-frame which is moved in and out for detection purposes, when the blank is being centered. This very sturdy C-frame provides excellent protection of the sensors against damage. To reduce the height of the assembly, the sensors have radial cable exits.

ProductI20
SensorIS/IE42-30GS
