eddyguard S

The entry into the eddy current structure test.

Digital eddy current test instrument for one channel nondestructive testing of metal components, mass produced parts and semi-finished products according to the Preventive Multi-Frequency Technology (PMFT).

Testing for material properties such as hardness, case depth, structure, tensile strength, heat treatment or alloy.







  Catalogue Eddyguard S

Description of product

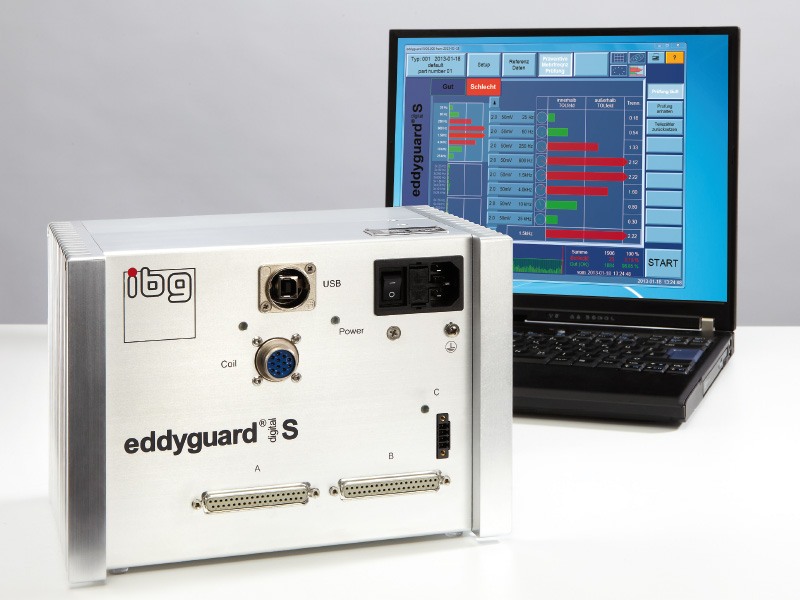

The eddyguard S distinguishes itself with compact design and concentration on one channel structure applications with one coil at one location combining that with the well-known ibg test reliability and ease of operation. Configuration is effected by means of a PC or a laptop supplied by customer via the USB-port. The ergonomic interface of the PC-software facilitates intuitive and simple operation After configuration is finished the eddyguard may be disconnected from the PC/laptop. The eddyguard continues testing selfsufficiently.

The eddyguard is based on the ibg system concept proven for decades. All coils and probes of the ibg system family can be used. The eddyguard is therefore recommended not only for the solution of new tasks but also as an upgrade for existing installations to be equipped with state-of-the-art eddy current technology.

Digital processing of the measuring signal with special processors immediately after the pre-amplifier guarantees highly stable test results.

Calibration with ibg’s unique “good-part-only-concept” enables setup within a few minutes true to the motto: “Do you still calibrate or are you already testing?” An adequate number of good parts is recorded as reference parts with connected PC/laptop. From the eddy current signals tolerance zones are automatically generated encompassing the metallurgical magnetic fingerprint of the group of good parts for all PMFT test frequencies of the fundamental wave and two harmonics. After recording of good parts, testing can be immediately started. Faster starting yet more reliable eddy current testing is not possible.

Technical data

Connections
IO-portsoptically insulated interface for PLC connection with 32 inputs and 32 outputs
USB 2.0for connection of a PC/laptop supplied by customer.
Housing

completely sealed and thus can be used in a dusty production environment; for installation on top hat rail TH35 as per DIN EN 60715


Designed to be integrated: an eddyguard S in a typical assembly inside a cabinet
