eddyliner S

The new standard of eddy current testing for production and laboratory.

Digital eddy current test instrument for one channel nondestructive testing of metal components, mass produced parts and semi-fi nished products according to the Preventive Multi-Frequency Technology (PMFT).

Testing for material properties such as hardness, case depth, structure, tensile strength, heat treatment or alloy.

  Catalogue Eddyliner S


Description of product

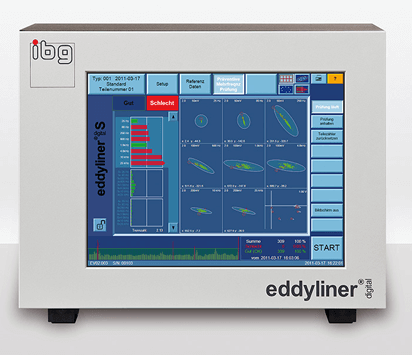

The eddyliner digital S distinguishes itself with compact design and concentration on one channel structure applications with one coil at one location combining that with the well-known ibg test reliability and ease of operation. The ergonomic interface facilitates intuitive and simple operation via touch screen. All functions and test results are captured at a glance.

The eddyliner is based on the ibg system concept proven for decades. All coils and probes of the ibg system family can be used. The eddyliner is therefore recommended not only for the solution of new tasks but also as an upgrade for existing installations to be equipped with state-of-the-art eddy current technology.

Digital processing of the measuring signal with special processors immediately after the pre-amplifier guarantees highly stable test results.

Calibration with ibg’s unique “good-part-only-concept” enables setup within a few minutes true to the motto: “Do you still calibrate or are you already testing?” An adequate number of good parts is recorded as reference parts. From the eddy current signals tolerance zones are automatically generated encompassing the metallurgical magnetic fi ngerprint of the group of good parts for all PMFT test frequencies. After recording of good parts, testing can be immediately started. Faster starting yet more reliable eddy current testing is not possible.

Technical Data

IO-portsoptically isolated interface for PLC connection with 32 inputs and 32 outputs
XVGAPXVGA interface allows connection to a monitor or projector, an essential feature for training courses.
PrinterCommercially available printers may be connected via USB 2.0 or Ethernet to printout test results.
USB 2.0Two USB 2.0 on front side, one on the bottom side for data storage.
Mains100-240 V, 50/60 Hz
Protection classIP41
Ambient temperature0 – 45°C
Relative humiditymax. 85%, non-condensing
Dimensions (wxhxd)304 x 229 x 200 mm
Weight6 kg

completely sealed and thus can be used in a dusty production environment

desktop housing, inclinable by folding feet

19” rack installation as option

Back panel eddyliner S
