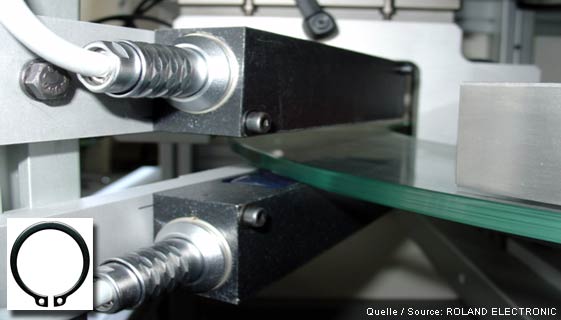

Structure testing for the inspection of retaining rings according to DIN471 on the glass disk of a sorting and testing machine.

The purpose of this application is the non-contacting testing of retaining rings in a continuous pass. It is checked whether the parts are hardened or not. Not hardened parts are sorted out.
The control unit unit I20-2-O-S, in combination with the IEQ / ISQ160 sensors comes to application.

The sensor distance is 15 mm; 255 test programs are available for different dimensions of the parts. The program change takes place via I / O or via fieldbus interface.
The settings in order to distinguish between hardened and non-hardened parts are performed by a static or dynamic Teach-In process.
