TrueX Family (Handheld)

TrueX Family (Handheld)

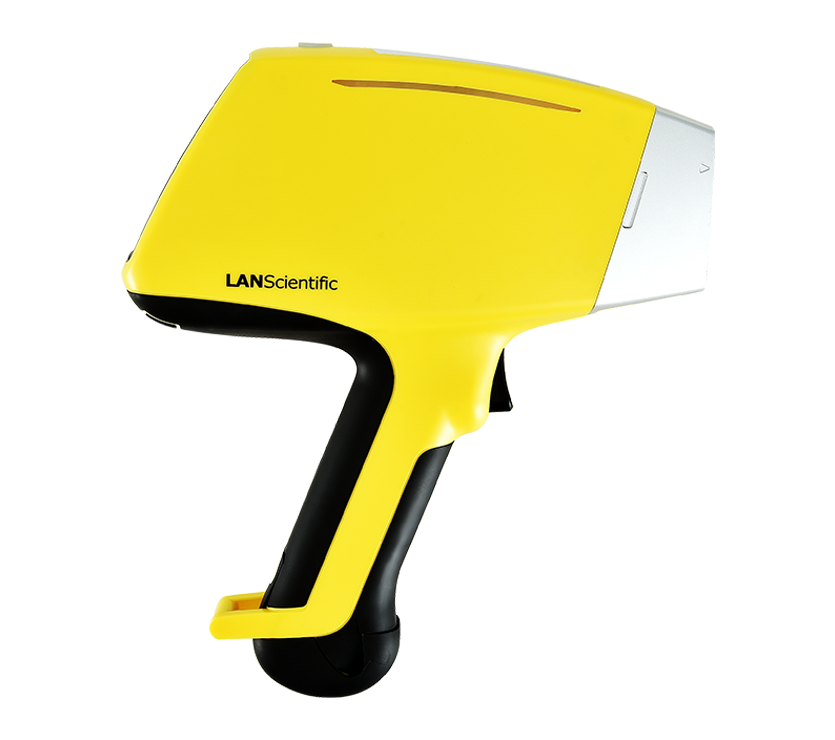

The handheld/portable/benchtop X-ray fluorescence (XRF) analyzer is capable of qualitative and quantitative analysis of solid, powder, liquid and other samples from NA-U and analysis concentrations from 100% to ppm.


Description of product

The eddyvisor distinguishes itself with its high performance modular concept with max. 16 independently working crack detection channels and max. 32 structure test channels all in a very compact design. Additionally, it offers unique features for the realization of sophisticated test tasks using the eddy current technique, combined with the well known ibg test reliability and ease of operation.

The ergonomic interface enables easy and simple operation via touch screen. All functions and test results are captured at a glance. Digital processing of the measuring signal with unique processors, immediately after the pre-amplifier guarantees the greatest possible stability of test results.

The eddyvisor is based on the long proven ibg system concept. All coils, probes, rotating heads and other system components are standardized worldwide. So eddyvisor is the solution for new tasks and to upgrade existing production machines to equip them with state of the art eddy current technology.

Technical Data

IO-portsAn optically insulated interface with 32 in- and 32 outputs is available for PLC connection. As option, a further module with additional 32 in- and 32 outputs
can be installed. An allocation of the signals to the IOs is free in the eddyvisor.
XGAThe screen may be displayed on another screen in XGA-resolution by means of the HDMI and display port connector. Essential for trainings.
PrinterA usual printer can be connected via USB 2.0 or Ethernet to print screens or protocols.
USB 2.0Two USB 2.0 ports at the front, one underneath for data storage.

Two models of eddyvisor are available: Desktop version eddyvisor D (with retractable feet, inclined) or as separated switch panel version with operating
unit eddyvisor HMI and measuring unit eddyvisor M.
Completely sealed and thus suitable for rough production environment.
Technical Data mains 100 – 240 V, 50/60 Hz, ambient temperature 0 – 45°C, relative humidity: max. 85%, non-condensing

Rear side eddyvisor equipped with (from left): 4-channel crack detection module, 8-channel structure test module, IO-module, mains
